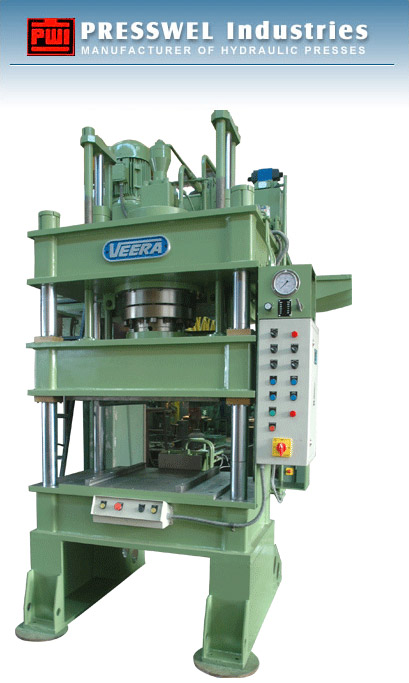

| Four-Post
Hydraulic Presses. |
 |
|
|
| EXPERINCE |
 |
|
The name Veera is among the oldest
and most trusted of machine tool builders, Manufacturing
experience on presses dates back to 1967. Veera places
primary emphasis in design and manufactures for long
services and low maintenance. Regardless of sizes or
speed, all presses are production quallity machines
designed for many years of continous use. |
|
|
|
LARGE
PICTURE |
KFP - SERIES |
ABRIDGED
DATA |
|
|
Thise new series of 4 post hydroulic
presses join Veera,s broad line of hydraulic machinery. This
line is offered to meet the need for a wider chice of size,
capacities and speeds in a high quallity 4 post presses. Eleven
bacik maodels are covered in this brochure with a wide choice of
optional equipment. |
|
| PERFORMANCE |
|
Although long, trouble free service ranks
high in veera's design priopties, these machines also represent
the most advanced industry proven hydaulic and mechanical
design. High speeds, and convenience in setup and operation make
these presses competitive production tools. |
|
| The presses are found on such jobs as: |
|
|
Riveting & Staking, Drawing, Coining,
Forming, Embossing, Blanking, Trimming, Precision Assembly, Die
try out, Hobbing etc. |
|
| HEAVY DUTY FRAME |
|
The bed and cylinder mounting surface are
machined parallel for perfect die aligment. Each frame is
engineered for its rated power with ample reserve strength.
Frame deflection is minimize for long die life. |
|
| CYLINDERS |
|
Our press cylinders have a large reserve
capacity, the rams are of large diameter and of alloy steel,
harden, group and hard chrome plated to resist scoring or
pitting. This helps to minimize leakare and increases the life
of multilip seals. |
|
| BLOSTER PLATE |
|
Fastened to the flat bed, it,s easily
removable. T-slots of ample size secure die perfectly. Thead
holds and or cut outs are available. |
|
| RAM HEAD PLATE |
|
Fastened to the ram and guide
posts endures parallel matting to the die and tools under
operation. Ram travel is precisely square to the table. Large
sized accept big die sets. T-slots of suitable size provide
secure mounting option |
|
| DAYLIGHT AND STROKE |
|
Accommodates large dies,
generous long stroke lengths are easily adjustable. Special
daylight and strokes (large or smaller) are available. |
|
| HYDRAULIC SYSTEM |
|
Dual pump system provides a
verstile match. the high quality, low pressure hydraulic system
is designed for extra long life. Presses with speeds or extra
high speeds are available for specific applications. Only
standard manifold ensure compact design, less space, neat look,
leak free operation and easily accebility for the components. |
|
SELECTION OF CONTROLS
Dual Palm Button Controls |
|
Basic presses include this
standard control for operator's safety. Along with emergency
open button. |
|
| Returns Stroke Limit
Switch |
|
Basic presses include can and limit switch
to adjust return stroke frome 0 to maximum. |
|
| Jog Control |
|
Basic presses include this feature, for
die setting and maintenance. |
|
OPTIONAL EQUIPMENTS
Distance Reversal Switch |
|
To set depth of ram stroke for automatic
return to up position. |
|
| Pressure Reversal Switch |
|
To set pressure at which ram returns
automatically to up position. |
|
| Die Cushions |
|
Air or hydraulic die cushions for double
action. |
|
| Custom Frames |
|
Special daylight bed sizes, bed apertures,
table heights and other custom frame features available on
request. |
|
| Heated Platen |
|
Electrically heated, oil heated and water
cooling complete with temprature controllers. |
|
| Adjustable Dwell Timers |
|
When ram reaches desired work position,
timer is actuated, ram holds down. Ram released at end of preset
time period. |
|
| Automatic Cycle |
|
A control system for continous cycling of
ram. (Consult with factory) |
|
| Tooling Holes |
|
Special hold patterns on request. |
|
| T-Slotted Plates |
|
Special plates mounted in press bed and to
movinf platen available on request. |
|
| Knockots |
|
Mechanical, air or htdraulic knockouts
with stroke and other features to suit application. |
|
| Pre-slow down circuits |
|
Selected for some jobs where it is
desirable to change over ram speed from rapid advance to
pressing speed before contacting the work. |
|
| Heat exchanger |
|
Forcooling for optimum performance. |
|
| Anti Shock Circuit |
|
Provides reduced shock at break through on
heavy blanking, piercing and trimming jobs. |
|
|
