USA SERIES

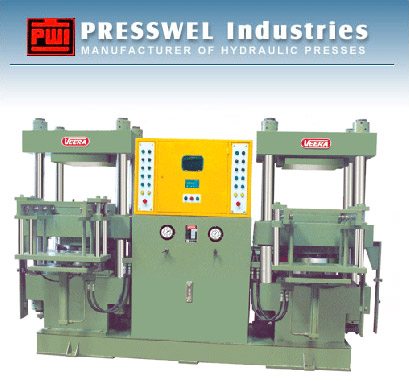

VEERA UKFP Series press are Twin type up-stroke hydraulic presses on a common plateform with common power pack and separated electrical control panel. the twin model presses consists of 2 identical upstroke Single Day light column presses with counter platen. The presses have micro processor based PLC control panel. Each press have its own manifold block mounted on it solenoid operated control valves. Each press consists of single acting up-stroking main cylinder attached to the moving platen.
{short description of image}
 LARGE PICTURE
 USA-D - SERIES
 ABRIDGED DATA
{short description of image}
Two separate double acting auxillary cylinders are mounted below the moving platen for fast approach and fast opening of the paress.
{short description of image}
Apart from the above the PLC have a provision to set the moving platen for bumping operation and air release before starting of main curing operation.
{short description of image}
Standard Features :
Press Frame : The press have the column design with good factor of safety to with-stand continuous load for trouble free operation. the pillars bushes are fitted with wiper seals to ensure retainig of lubricating oil in the guide bushes and resist entry of any dirt in guiding area.
{short description of image}
Squeeze Cylinder : The main cylinders is made out of rolled steel. The main pressing ram is made out of pre-harden alloy steel, ground & hardchrome plated.
{short description of image}
Power Pack : The power pack consists of fixed delivery, radial piston pump and vane coupled to a flanged moter. The valves are fitted on standard manifold block to ensure leak free operation and easy accessibility.
{short description of image}
Electrical System : Pumps are fitted with adequate size electric motor for operating through a network of switch starters etc. Suitable for 440 volts, 3-phase, 50 cycles supply.
{short description of image}
Accessories : Bottom platen moving out and hydraulic ejector can be provided.
{short description of image}
If you have questions regarding this product that are not found on this page please email: info@presswel.com
